Specification

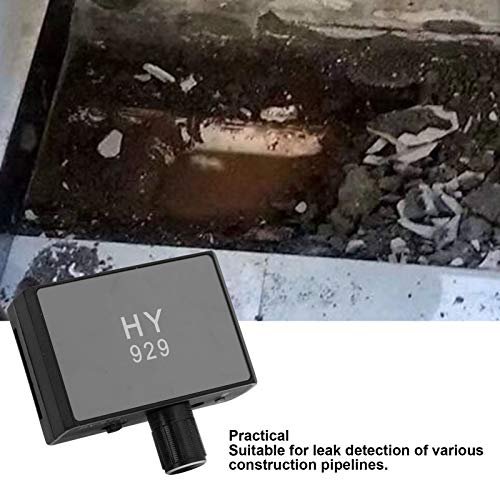

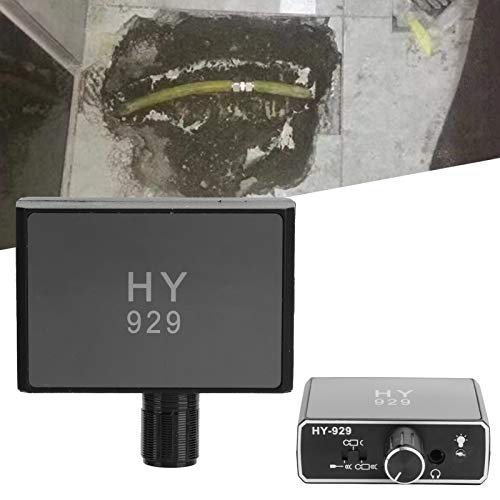

Item Type: Pipe Water Leak Detector
Material: ABS + Metal
Weight: Approx. 380g/13.4oz

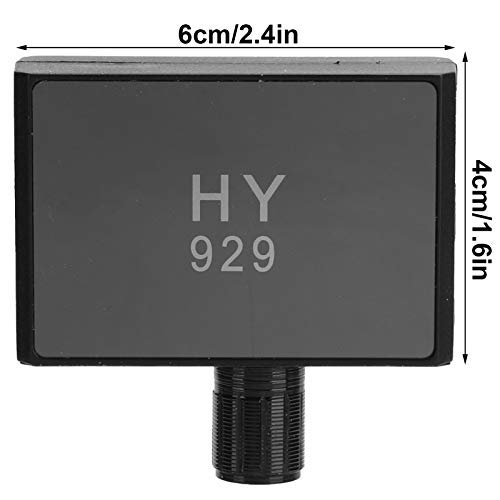

Product Size: Approx. 6 x 4 x 2cm/2.4 x 1.6 x 0.8in
Color: Black
Consuming Current: 15mAh
Use Battery: Lithium Battery 3.7V Batteries (Built-in Battery)
Probe Sensitivity: -10D db- -70D db
Maximum Audio Amplification Factor: 20000X
Penetrability: Pipe/ Cement Pipe/ Steel Pipe
Answering Method: Earphone can be connected with 16 ohm speaker
Effective depth of leakage detection: within 1 meter
Instructions for use:
1. Insert the probe or probe into the audio input jack
2. Insert the earphone into the audio output jack
3. The red light is on when charging, and the red light is off when completely charged
Before using this product, you need to fully understand the water pipe wiring of your home. The water leakage position may be in the water pipe part inside the wall, or it may be the exposed water pipe part outside the wall. Before measuring, you need to plug in the headset and probe, and then turn on; When you start measuring, you need to use the probe to gradually move along the water pipe wiring, wear headphones to listen to the sound detected by the probe, the sound of water will change significantly at the water leakage, and so on, move the probe to listen to the sound change, until the water leakage is detected, the water leakage detection method inside the wall and outside the wall is the same, but the sound inside the wall is more difficult to identify because of the wall barrier. You need to turn up the volume and identify it carefully.

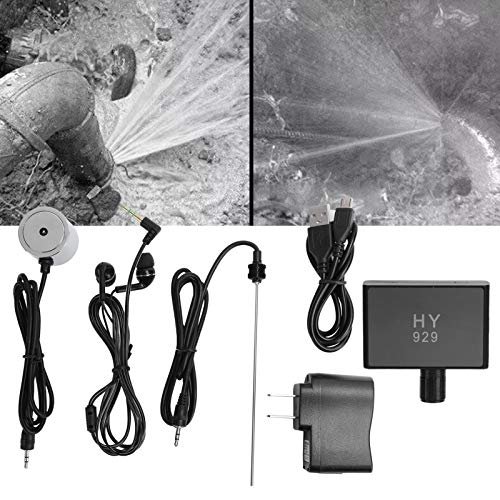

Package List
1 x Host Detector
1 x Plug
1 x Circular Probe
1 x Needle Probe
1 x USB Cable
1 x Headphone
1 x Instruction
